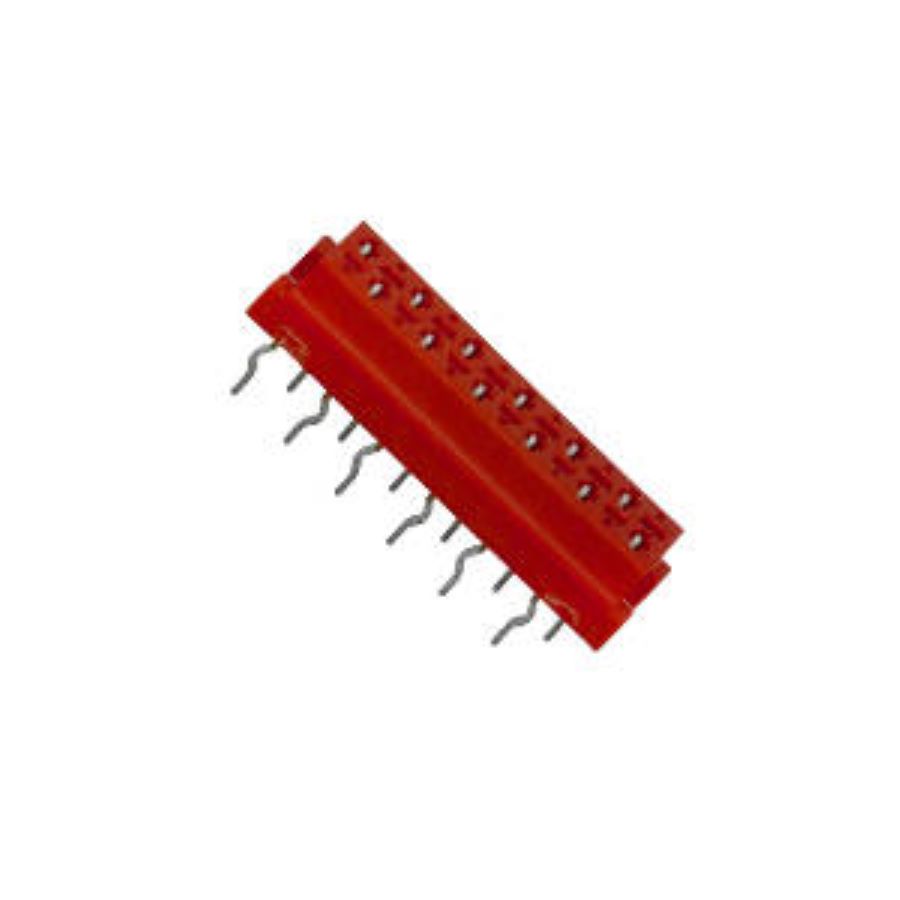

8-215079-2
Manufacturer:
TE Connectivity
Mfr.Part #:
8-215079-2
Datasheet:
Description:
Board to Board Connectors Through Hole Connector, Pin, Receptacle Number of Positions:12 Number of Rows:2 Row Spacing:2.54 mm Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 17.3 mm |
| Width | 17.3 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 4.064 mm |
| Material | Polyester, Thermoplastic |
| Packaging | Box |
| Voltage Rating | 100 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.0988 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 12 |
| ELV | Compliant |
| Number of Poles | 12 |
| Connector Type | Connector, Pin, Receptacle |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Contact Current Rating | 1.5 A |
| Housing Color | Red |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 5 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
| Mounting Angle | Straight |
Stock: 632
Distributors
pcbx
pcbxUnit Price$1.10774
Ext.Price$1.10774
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10774 | $1.10774 |
| 10 | $1.00032 | $10.00320 |
| 25 | $0.96899 | $24.22475 |
| 50 | $0.93864 | $46.93200 |
| 100 | $0.90924 | $90.92400 |
| 300 | $0.88076 | $264.22800 |
| 500 | $0.85321 | $426.60500 |
| 1000 | $0.83944 | $839.44000 |
